SKU: J-32-1600-01

Heavy Duty Submersible Bilge Pump [Size: 1600 GPH, 12V]

$134.15

In Stock

Size


Description

 Bulky/Heavy Item – Quote required for shipping

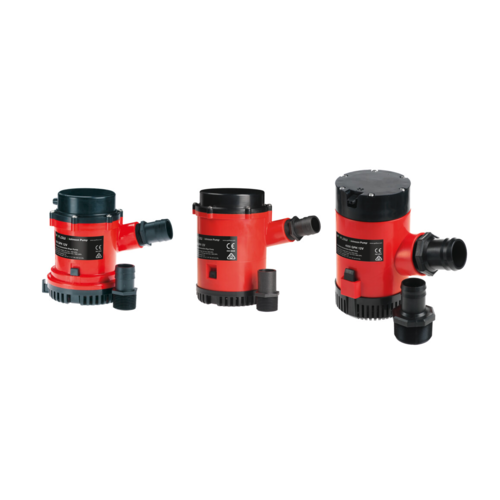

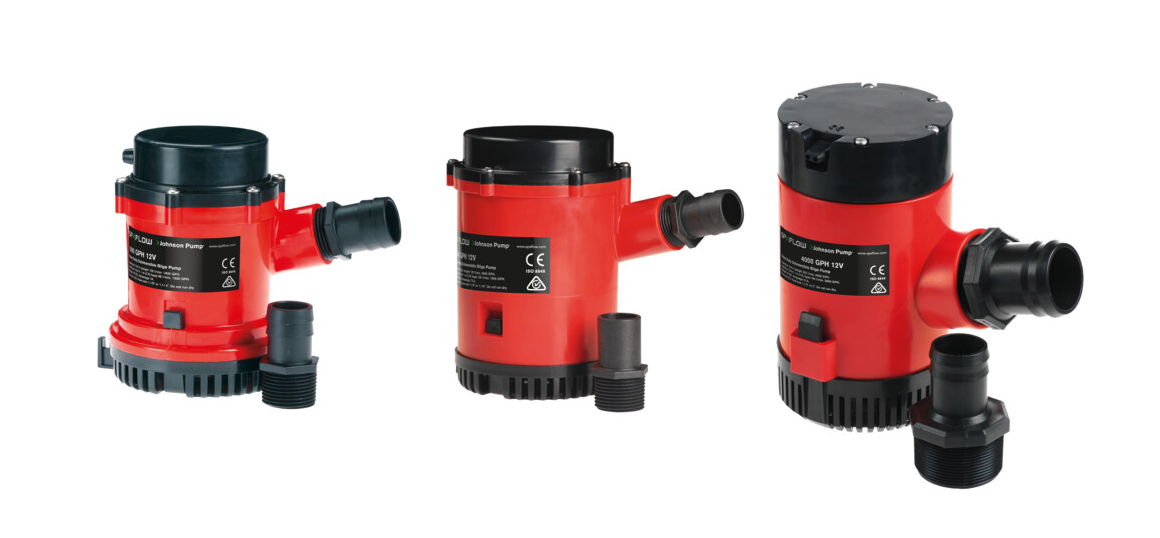

Heavy Duty Submersible Bilge Pumps in capacities of 1600, 2200 and 4000 GPH.

  • Liquid cooled, 12 pole motor with double ball bearings for extended service life
  • Shaft of stainless steel
  • Impeller is carefully designed and tested to maximise head and flow
  • Universal base plate and choice of 2 different ports makes for a simple installation
  • Removable check valve included
  • 1600 GPH motor is sealed off by a lipseal design
  • 2200 GPH motor is sealed off by a mechanical seal design
  • 4000 GP features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design



Technical Data

Description Capacity 1.0 m head (13.6V/27.2V) Capacity straight (13.6V/27.2V) Voltage Amperage Fuse Size Connection Wire Size (Length)
Heavy Duty Bilge Pump1600 GPH, 12V 98 l/min – 1550 GPH 100 l/min – 1600 GPH 12 V 7 A 10 A 1⅛" & 1¼" 1.3 mm2 – 16 GA (1.8m)
Heavy Duty Bilge Pump1600 GPH, 24V 98 l/min – 1550 GPH 100 l/min – 1600 GPH 24 V 3.5 A 6 A 1⅛" & 1¼" 1.3 mm2 – 16 GA (1.8m)
Heavy Duty Bilge Pump 2200 GPH, 12V 120 l/min – 1900 GPH 130 l/min – 2060 GPH 12 V 7.5 A 12 A 1⅛" & 1¼" 1.3 mm2 – 16 GA (1.8m)
Heavy Duty Bilge Pump 2200 GPH, 24V 120 l/min – 1900 GPH 130 l/min – 2060 GPH 24 V 4.5 A 6 A 1⅛" & 1¼" 1.3 mm2 – 16 GA (1.8m)
Heavy Duty Bilge Pump 4000 GPH, 12V 164 l/min – 2600 GPH 252 l/min – 4000 GPH 12 V 15 A 25 A 1½" & 2" 1.3 mm2 – 16 GA (1.8m)
Heavy Duty Bilge Pump 4000 GPH, 24V 164 l/min – 2600 GPH 252 l/min – 4000 GPH 24 V 7.5 A 15 A 1½" & 2" 1.3 mm2 – 16 GA (1.8m)



Dimensions

GPH Max Ø  Max Height Weight
1600 GPH 108mm 149mm 1.3kg
2200 GPH 108mm 177mm 2.25kg
4000 GPH 121mm 216mm 2.45kg



Specifications

SKU HDSubBilge
Brand SPX FLOW
