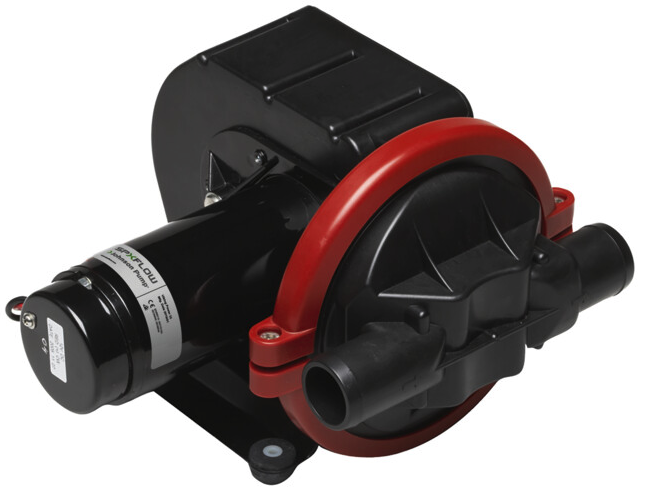

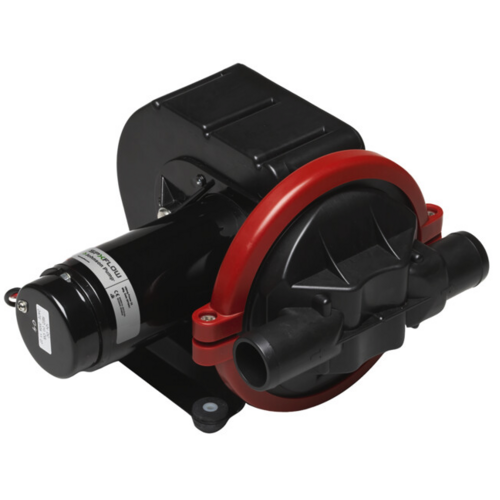

Viking Power 32 Wastewater Pump [Size: 12V]

 Bulky/Heavy Item – Quote required for shipping

Compact Shower Drain, Bilge and Wastewater Pump

A modern, heavy duty, single-chamber, self-priming diaphragm pump that can be set up in several different pump/motor configurations. It is easy to install anywhere after the drain outlet in the wastewater system or as a bilge pump in any leisure craft – new or used. Thanks to its single-chamber design and non-choke valves, the Viking Power 32, can be used to pump un-macerated sewage to a holding tank or transfer it onwards to a septic tank.

• Maximum flow 32 l/min
• Specifically engineered to pump black wastewater
• Uncompromising odour-prevention features
• Whisper quiet operation
• Self-priming
• High-impact glass-fibre reinforced nylon body
• Ball-bearing supported transmission
• Non-choke valves – no waste shredding required
• Pump head rotatable 360°
• Self-priming up to 2.5 meters
• Can be run dry and can pump air/water mixture
• Robust single diaphragm
• Electric motor with power-out, manual-crank backup
• Complies with ISO 15083 and small craft bilge pump
• Standard for vessels above 12m



Material Specifications

Motor	3.3 amp (12V),1.6 amp (24V) @ 0.1 bar (built-in thermal protection)
Body	Nylon
Valves	Nitrile rubber
Diaphragm	Reinforced nitrile rubber



Technical Data

Description	Capacity open flow	Capacity @0.1 bar	Max lift	Max head	Connection	Voltage	Fuse
Viking Power 32 12V	32 l/min – 8.5 GPM	30 l/min – 7.9 GPM	2.5m	4m	38 mm / 1½"	12 V	12 Amp
Viking Power 32 24V	32 l/min – 8.5 GPM	30 l/min – 7.9 GPM	2.5m	4m	38 mm / 1½"	24 V	6 Amp



Dimensions

Length	277mm
Width	264mm
Height	192mm
Weight	5kg
